Dash Installation Instructions

Step One

Remove Windshield
Dw install 1

Step Two

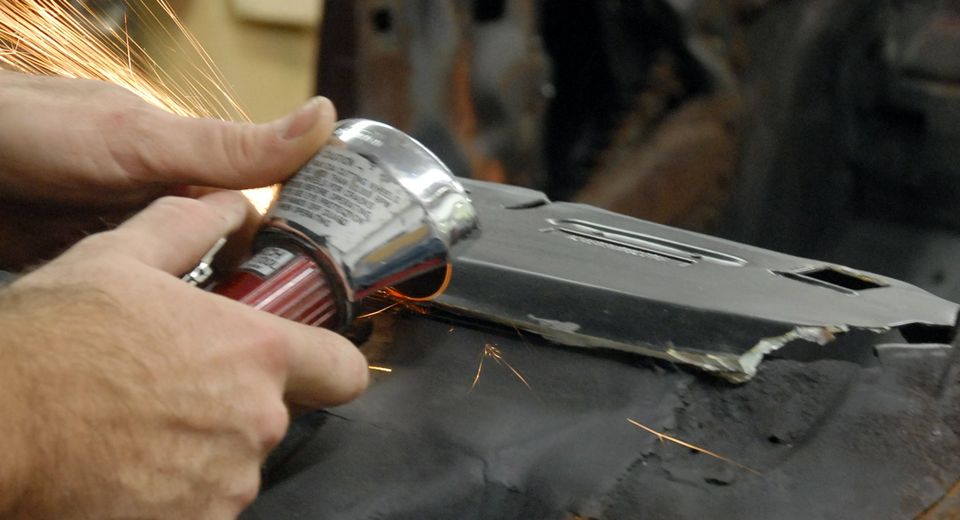

Cut Along Edge Of The Original Dash Leaving A 1" Lip

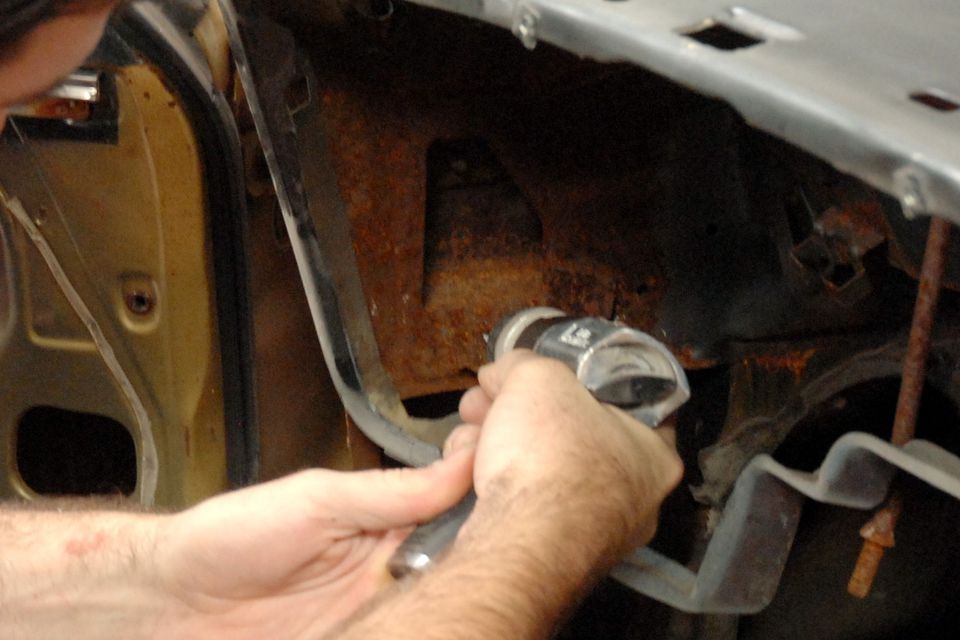

Install 2

Step Three

Drill Spot Welds Under Bottom Edge Of Dash And Remove Original Dash

Step Four

Set New Dash In Place

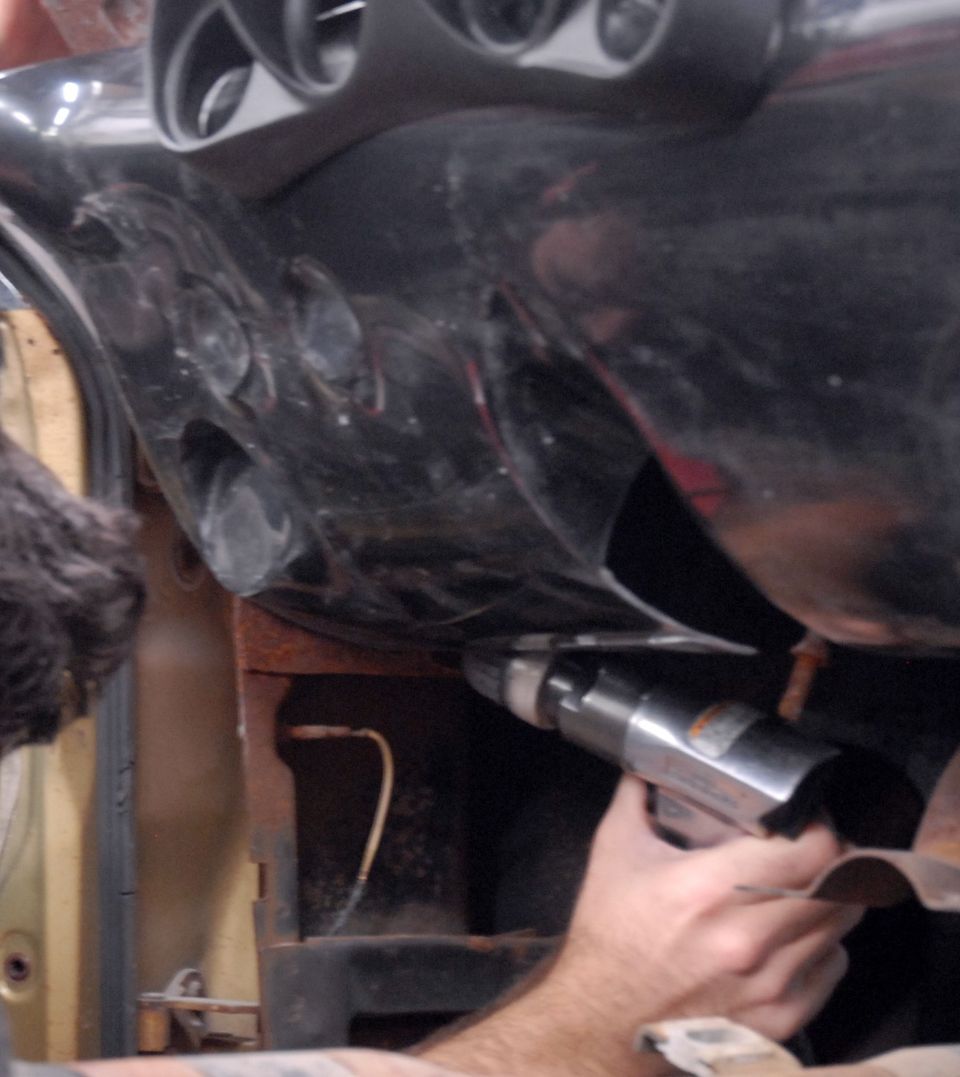

Intsall 3

Step Five

Drill Through Dash Into Cowl Area Where Original Dash Was Spot Welded

Step Six

Bond Metal Tabs To Bottom Of Dash Using Fiber-All, Kitty Hair Or Similar Material (Epoxy Glue) And Screw To Bottom Of Cowl

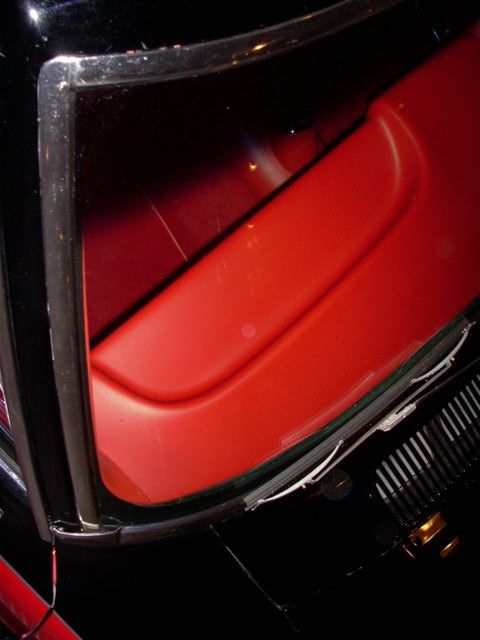

Install 4

Step Seven

Before Re-Installing Windshield, Black Bottom Edge Of Windshield On Inside, Even With Top Of Dash

Dash Installation Instructions

Click This Link To Download The PDF

Download "Dashworks Instructions.pdf"
